CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes

CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes
CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes
CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes
Grundlegende Informationen
Herkunftsort: China
Markenname: CoatTech
Zertifizierung: CE
Modellnummer: CT-Vorbereitung A15
Min Bestellmenge: 1
Preis: USD1000-USD6000/SET
Verpackung Informationen: Mit regulärem Film und Karton
Lieferzeit: 15 Tage nach Einzahlung
Zahlungsbedingungen: T/T
Versorgungsmaterial-Fähigkeit: 30Set/Monat
Kontakt
Name: CT-Vorbereitung A15 Energie mit Energie:: Diesel, Gas, Dampf, elektrischer oder anderer Option
Haupttür:: Falten Stil oder elektrischer Rollstil Motor:: Chinesische Marke oder Importmarke
Kontrollsytem:: Schalterstil oder SPS -Touchscreen -Steuerung Wand:: Metall Sheld, EPS, Steinwolle von PU für die Option
Farbe:: Weiße oder andere Option Anwendung:: Bus/LKW oder andere metallische Produkte
Energiequellen:: Wasser, Strom, Gas Beschichtung: 10-50um
Dimension:: Wie erforderlich
Hervorheben:

Infrared paint curing station

,

Short-wave IR heater cassettes

,

Overhead rail paint preparation system

CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes



Introduction:

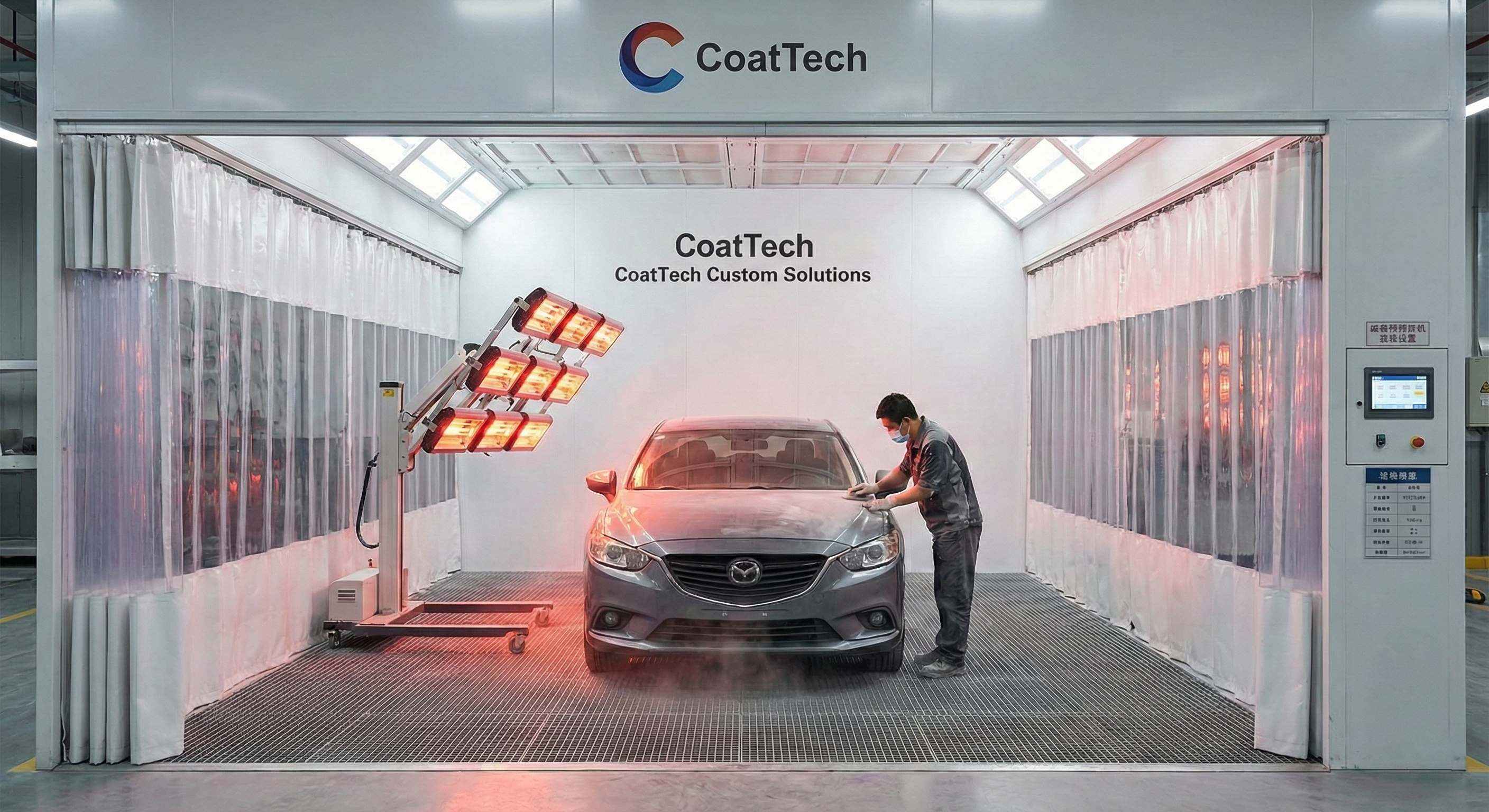

A multifunction prep station that combines sanding and curing capabilities. The integrated overhead infrared heaters allow for rapid curing of primers and putty without moving the vehicle.



Technical Specification Sheet



Model Inner Size (mm) Outer Size (mm) Total Airflow Heating Total Power Application
CT-Prep A5 6900×3900×2700 7000×5500×3400 18,000 m³/h Infrared ~20 kW Smart Repair / Fast Curing
System Component Description Optional
Heating IR System 3-Axis Movable Overhead Rail + 3 Curing Cassettes 6 Cassettes
  Emitters Short-Wave Ruby Red Halogen Lamps Gold-Plated Emitters
Cabin System Rear Wall Rockwool Insulated Panel (Fireproof) -
  Basement Full Grating Floor (Maximum Cleanliness) -
Air System Circulation 18,000 m³/h with Variable Speed Drive -
Safety Protection Distance Sensor, Overheat Protection -
Control Separation Separate Control Box for IR Lamps -

CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes 0CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes 1CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes 2CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes 3CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes 4CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes 5

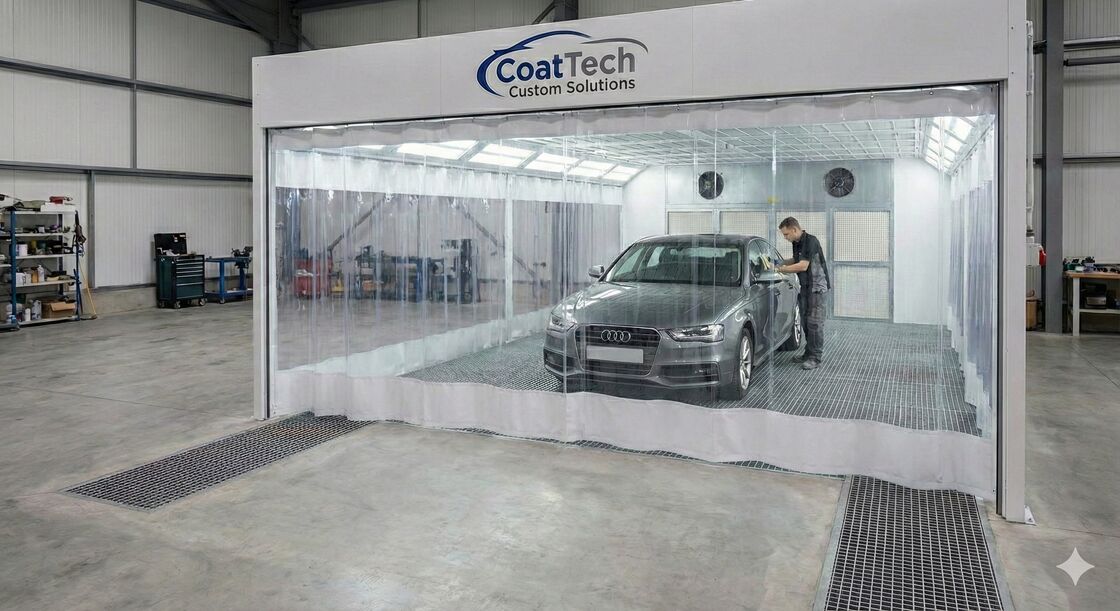

PVC Curtain Enclosure Unlike a fixed booth, the Prep Station uses sliding PVC curtains.

Energy Saving Strategy Don't turn on your 15kW Paint Booth just to spray a bumper with primer. Use the Prep Station (5.5kW) instead. It creates a cleaner environment than the open shop floor but costs a fraction of the price to operate.






FAQ


Q: Can I spray the final topcoat (Color/Clear) in this Prep Station? A: Technically yes, but we do not recommend it for high-quality finishes. The Prep Station is not a sealed environment like a Spray Booth, so there is a higher risk of dust. It is best used for Primer and Putty.

Q: Does it need a metal base (basement)? A: No. The most popular model is the "Rear Draft" version. It sits on your existing flat concrete floor and sucks air out through a filter box on the back wall. This saves money on ramps and steel bases.

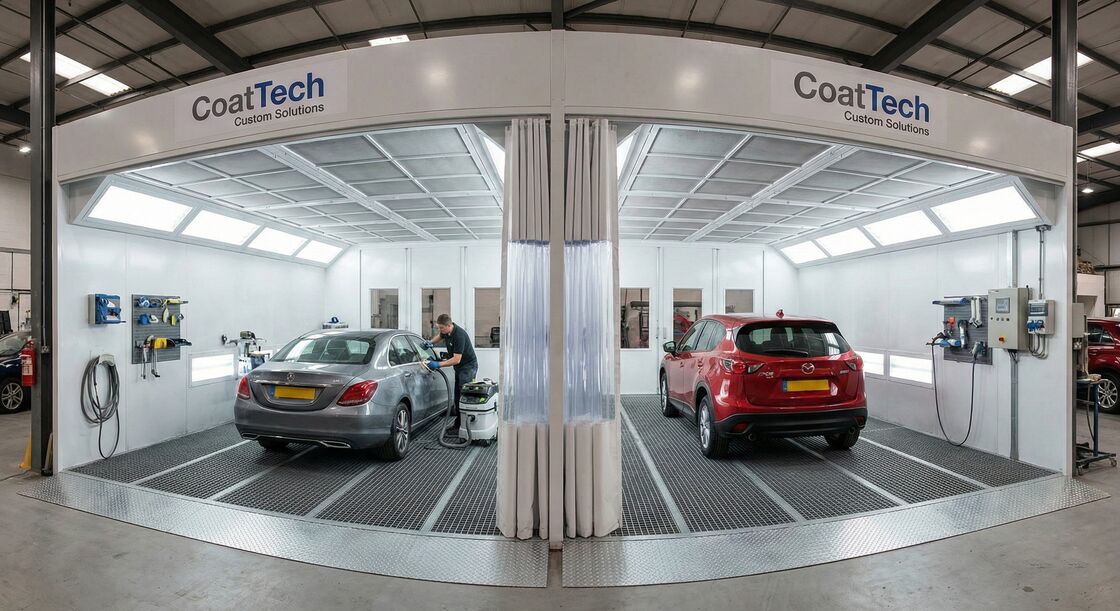

Q: Can you make a station for 3 cars at once? A: Yes, we can connect multiple units together (side-by-side) to create a multi-bay sanding line.

Q: Is the fan unit noisy? A: We use a dynamic balanced centrifugal fan with a belt drive, which keeps noise levels below 75dB.

CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes 6
CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes 7
CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes 8
CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes 9
CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes 10
CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes 11
