Diesel gas steam electric Spray Paint Booth Ground and Roof Filters Painting Cabinet
Technical Specifications
This large-scale, fully-featured spray booth is engineered for high-volume, professional industrial painting, baking, and finishing applications. Its robust construction and advanced systems ensure a controlled, safe, and efficient environment.
1. Structural Design & Dimensions

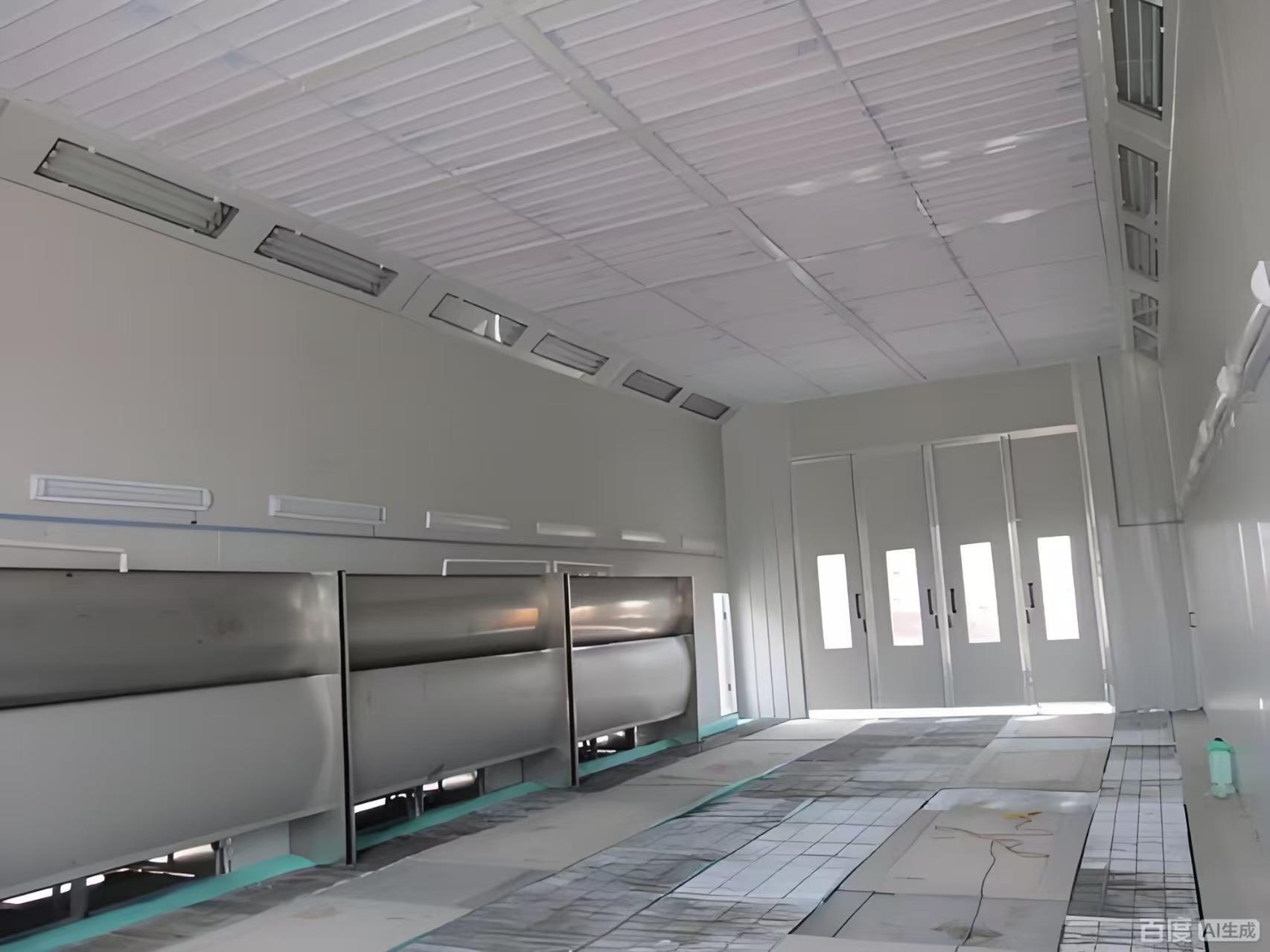

Spacious Work Area: Offers a substantial internal workspace measuring 15,000 mm (L) × 5,000 mm (W) × 5,000 mm (H).
Sturdy Construction: Built with a 70mm thick EPS sandwich panel wall and a 50mm thick EPS roof panel (with rock wool or PU options available), finished with 0.426mm white color steel and sealed steel edges.
Accessibility: Features a large 4-leaf main access door (4,000 x 4,600mm) and two standard working doors (800 x 2,000mm) with observation windows and pressure locks.
2. Advanced Airflow & Ventilation System
High-Capacity Air Handling: Equipped with two independent Make-Up Air Units and two Exhaust Air Units for precise environmental control.
Air Supply: Total flow of 40,000 m³/h via external rotor centrifugal fans (2x 7.5KW motors per unit).
Air Exhaust: Total flow of 4,000 m³/h via belt-driven centrifugal fans (2x 11KW motors).
Versatile Ducting: The system includes multiple 1000x1000mm straight ducts, 90°, and 45° elbows, enabling flexible and efficient pipeline layout for optimal airflow management.
3. Comprehensive Filtration & Environmental Control
Multi-Stage Filtration: A four-stage filtration system ensures clean intake air and safe exhaust:
Primary Filter (G3)
Sub-High-Efficiency Filter (F5)
Paint Arrestor Filter (G3)
Activated Carbon Filter for adsorbing VOCs (benzene, xylene).
Powerful Heating System: Two independent systems, each with a Riello RG5S diesel burner (260,000 KW max output) and a stainless-steel heat exchanger. Capable of raising the booth temperature from 0°C to 20°C for spraying and to 60°C for baking within 10-15 minutes. (Natural gas/electric/IR options available).
Optimal Working Environment & Safety
Excellent Illumination: Provides illumination ≥1000 Lux via a combination of 80 top-mounted and 88 waist-level 18W explosion-proof LED lamps.
Integrated Control System: A centralized electronic control panel manages all functions: spraying, heating, baking, drying timers, lighting, and emergency stop. It includes temperature controllers, gauges (ammeter, voltmeter, pressure), and alarm systems for full operational oversight.
Floor & Ventilation Options: Features a grated floor with flat iron and twisted steel grilles (24 pieces) and offers optional side-wall exhaust configuration.
Advantages:
Robust Structural Integrity and Customizable Build
High-Strength Enclosure: The booth is constructed with 70mm thick EPS core wall panels and 50mm thick roof panels, clad in 0.426mm pre-coated steel with fully sealed edges. Optional materials such as rock wool or PU are available for enhanced insulation and fire resistance.
Large, Functional Access: A wide 4-leaf main door (4000×4600mm) and two standard service doors (800×2000mm)—fitted with toughened glass viewing windows and pressure seals—enable easy entry of large workpieces while maintaining an airtight, safe environment.
|
Inside
dimension
|
15000 × 5000 × 5000 mm (L × W × H) |
|
outer
dimension
|
15130 × 6890 × 5600 mm (L×W×H) |
| Basement |
There are 2 rows of 30x4 flat iron + ⌀8 twisted steel floor grilles (24 pieces) on both sides of the ground (optional side wall exhaust) |
| front door |
Door size: 4000 × 4600mm (W×H), sheet metal bending door, 4 door leaves, square tempered glass window, filling: EPS. (The filling can be adjusted, and the gate can be equipped withan electric rolling shutter) |
| working door |
2 sets, working door size: 800×2000mm (W×H), equipped with
pressure lock and glass observation window
|
| wall panel |
EPS wall panel, effective width 1150mm, total thickness 70mm,
color steel plate thickness: 0.426mm, white, steel edges sealed on both sides; ( Rock wool, PU optional )
|
| roof |
EPS wall panel, effective width 1150mm, total thickness 50mm ,
color steel plate thickness: 0.426mm, white, steel edges sealed on both sides; ( Rock wool, PU optional )
|
| illumination |
Top lighting: 20 groups × 4 pcs = 80 pcs 18W lamps
Waist lighting: 22 groups × 4 pcs = 88 pcs 18W lamp tubes, LED
lamp tubes, explosion-proof light box
Illumination ≥1000Lux
|
|
Air Unit
installation
|
Air inlet from the side , exhaust from the rear, square tube
welding + aluminum tee frame, white paint, high-strength machine-made 20mm thick rock wool board mask
|
|
Make-Up
Air unit
(2 groups)
|
Each group is equipped with 2 external rotor double-inlet centrifugal fans, single motor power: 7.5KW; total flow: 40000m3 /h, no-load wind speed: 0.25m/s; air supply pneumatic adjustment damper , cycle start pneumatic damper . |
|
Exhausted
Air unit
(2 groups)
|
Each group is equipped with 1 double-inlet centrifugal fan, pulley drive, single motor power: 11KW; total flow: 4000m3 /h, no-load wind speed: 0.25m/s; exhaust manual adjustment damper . |
|
Heating
System
(2 sets)
|
Each group is equipped with a Riello RG5S Diesel burner with a
maximum heat output of 26,000KW; equipped with a 304 stainless steel heat exchange furnace; temperature rise painting: 20°C (from 0°C to 20°C in the spraying state); baking paint: 10-15 minutes (from 20° to 60ºС) paint condition. (Natural gas heating, electric heating
tube heating, and infrared baking lamp heating can be selected)
|
|
filtering
system
|
1Air supply primary filter cotton : EN 779 level: G3
2 sub-high efficiency filtration: full depth three-dimensional viscose; EN799 level: F5,
3 Glass fiber paint-resisting cotton blanket filtration: EN 779 Level: G3;
4. Activated carbon particle filtration: adsorbs benzene and xylene in exhaust gas
|
| Electronic control system |
Spray painting, heating spray painting, baking paint, drying time setting, lighting switch, fault indicator light, temperature controller, power switch, emergency stop switch, timer, temperature limiter , ammeter , voltmeter , pressure gauge, pressure alarm |
|
Pipeline
system
|
Each group of air supply and exhaust is equipped with 4 sections of 10 00 x 10 00 x 1000mm straight air ducts, 1 section of 10 00 x 10 00mm 90° elbow, and 1 section of 10 00 x 10 00mm 45° elbow; |
| total power |
56KW |
The large-size automobile spray booth is designed to meet diverse needs with top-notch technical specifications
and adaptable features. The interior dimensions are 6900 × 3900 × 2650 mm (L × W × H),(COULD BE CUSTOMIZED)
while the exterior measures 7000 × 5350 × 3400 mm (L × W × H). (COULD BE CUSTOMIZED)The sturdy basement
features galvanized sheet bending hoarding, supported by square tubes and a floor grille, ensuring an overall load-bearing
capacity of 2.4T, adjustable as needed.
The main front door, 3000 × 2600mm (W×H), has three leaves with square tempered glass windows and EPS filling.
An additional working door, sized 800×2000mm (W×H), includes a pressure lock and observation window.
The booth’s EPS wall panels and galvanized sheet roof provide robust insulation, with optional materials available.
The lighting system delivers over 1000Lux with 32 top and 16 waist LED lamps. The air unit efficiently manages
intake and exhaust, aided by a Riello RG5S burner for optimal heating. The comprehensive filtration system ensures
a clean working environment, while the electronic control system offers precise operational control. Total power
requirement stands at 17kW.(COULD BE CUSTOMIZED)
